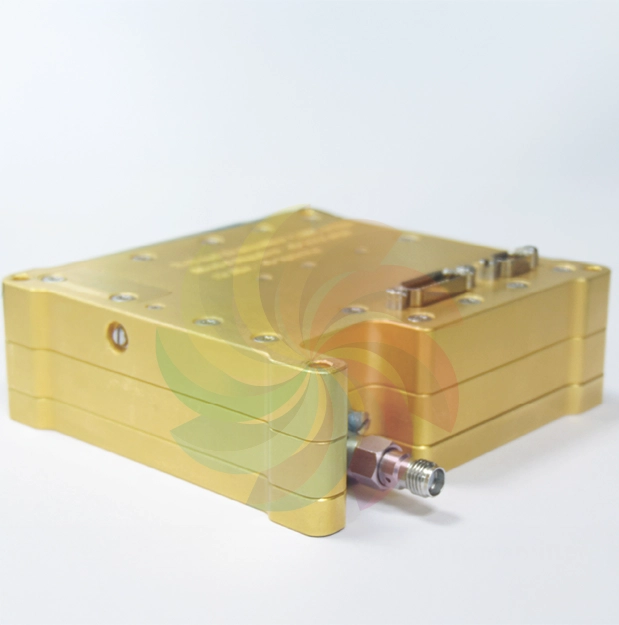

X-Band Satellite Data Transmitter

• Function: Extremely compact, CubeSat-compatible transmitter for advanced missions requiring very high data throughput (high-speed data downlink from LEO).
• Key Features:
  • Very high throughput in the CubeSat form factor.
  • Flexible, state-of-the-art modulation and error correction coding.
  • Adaptive coding and modulation to maximize throughput.
• Performance Specifications:
  • Maximum Throughput: 1 Gbps.
  • Transmission Frequency: Factory settable 8.1−8.5 GHz.
  • Symbol Rate: 250 Msymb/s (customizable).
  • Modulation: QPSK, 8PSK, 16APSK, and 32APSK.
• Physical & Power Specifications:
  • Size: 87×93×30 mm³.
  • Mass: 360 g.
  • Operating Temperature: −20°C to +50°C.
  • Power Supply: 12 V non-isolated (11−16 V).
  • Peak Power Consumption: 22 W.
• Space Heritage: TRL9 (Space-proven).

For more information, Please download the Broucher
