LEOS-100

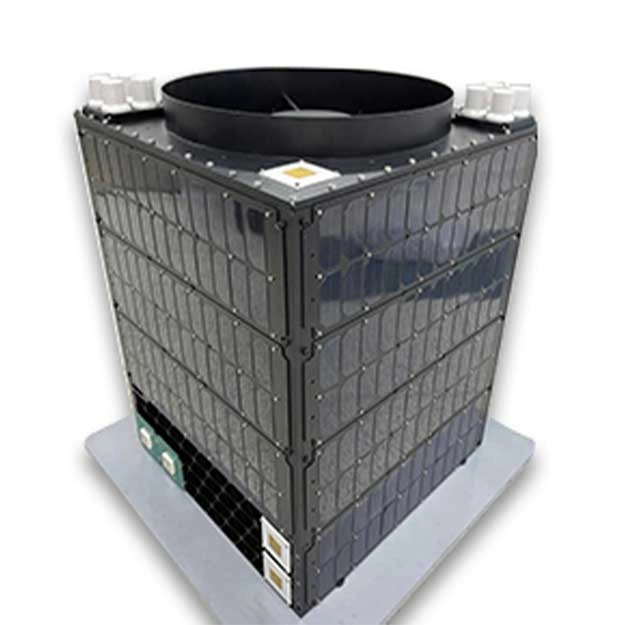

LEOS-100 Platform: High-Power, Precision Earth Observation Satellite

The LEOS-100 platform is a high-performance small satellite designed for Earth observation, defense, and scientific missions requiring high-precision imaging and power-intensive payloads. Equipped with body-mounted solar panels, it supports large instruments capable of delivering 50cm GSD (Ground Sample Distance) imaging, making it ideal for remote sensing, geospatial intelligence (GEOINT), and surveillance applications.

LEOS-100 System Specifications

• Core Volume: 600 × 600 × 200 mm³
• Expandable Envelope: 100mm on each side (customizable for mission needs)
• Mass: 150kg
• Design Life: 5-year LEO mission reliability

Payload Capacity

• Maximum Volume: 600 × 600 × 800 mm³
• Payload Mass: 50–75kg
• Supports high-resolution optical, radar, and scientific payloads
• Optimized for ISR, weather monitoring, and environmental studies

Satellite Bus & Communications

• High-Precision Target Pointing: 5°/s for agile maneuverability
• Secure, High-Speed Data Transmission:
• S-Band TT&C at 2 Mbps
• X-Band High-Speed Downlink up to 1 Gbps
• Advanced Cybersecurity: Fully Encrypted Data & TT&C
• Electrical Propulsion for Extended Mission Life & Maneuverability
• Power Generation: Supports up to 2kW power requirements, enabling high-performance payloads

Engineered for U.S. commercial, defense, and scientific missions, the LEOS-100 platform provides a scalable, high-power satellite solution for next-generation Earth observation and intelligence applications.

Download the full brochure for detailed specifications, processing levels, and sample products.
