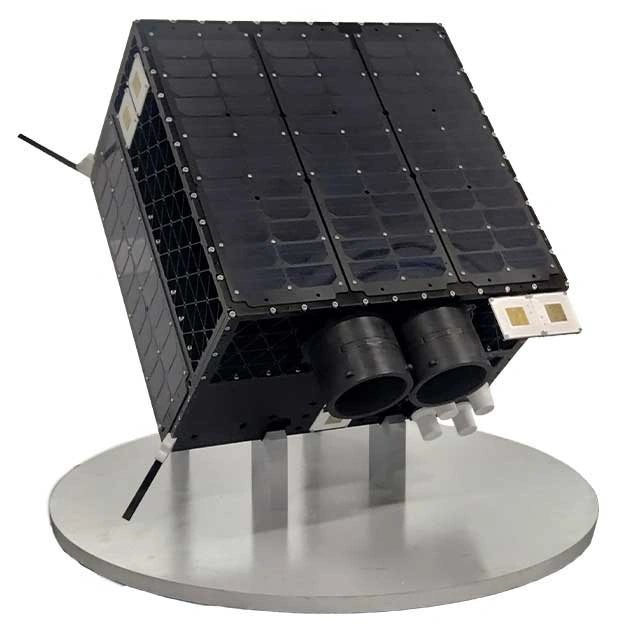

LEOS-50
LEOS-50 Platform: High-Performance Small Satellite Solution
The LEOS-50 platform is the backbone of ABA satellites, designed to support a wide range of advanced payloads with exceptional performance and flexibility. Engineered for Low Earth Orbit (LEO) operations, this 50kg-class small satellite is optimized for Earth observation, communications, remote sensing, and defense applications.
LEOS-50 System Specifications
- Core Volume: 570 × 570 × 200 mm³
- Expandable Envelope: 100mm on each side (customizable based on payload requirements)
- Mass: 50kg
- Design Life: 5-year LEO mission durability
Payload Capacity
- Maximum Volume: 570 × 570 × 400 mm³
- Payload Mass: 15–30kg
- Configurable for: EO, ISR, and scientific payloads
Satellite Bus & Communications
- High-Precision Target Pointing: 5°/s for agile maneuverability
- Secure Communication Links:
- S-Band TT&C at 2 Mbps
- X-Band High-Speed Downlink up to 1 Gbps
- Fully Encrypted Data & TT&C (Cybersecure architecture)
- Electric Propulsion: for Extended Mission Capabilities
Designed for U.S. commercial and government space programs, the LEOS-50 platform offers a scalable, high-performance solution for next-generation satellite missions in Earth observation, defense, and telecommunications.
More Products from Satellites

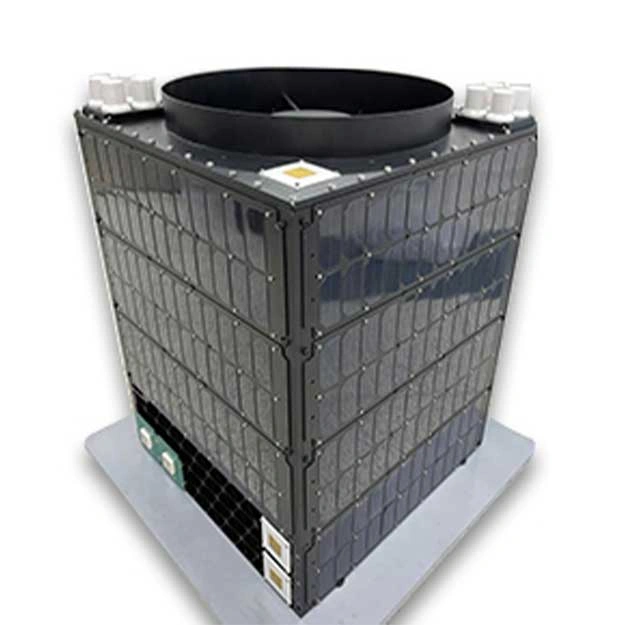

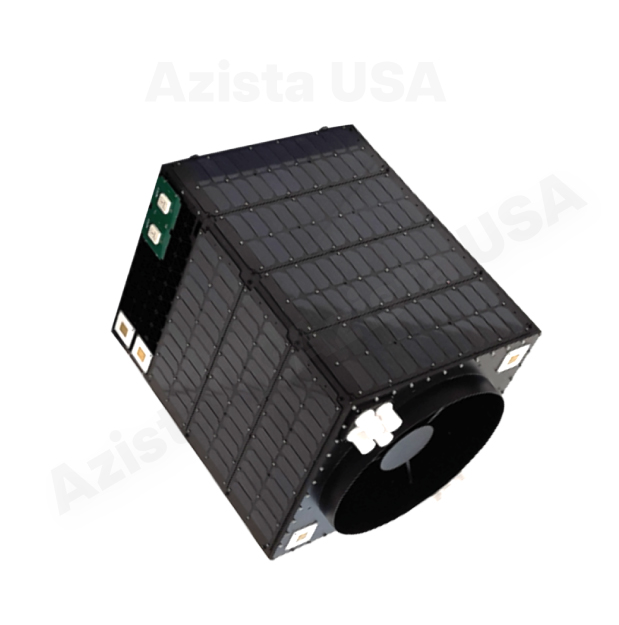

LEOS-100
